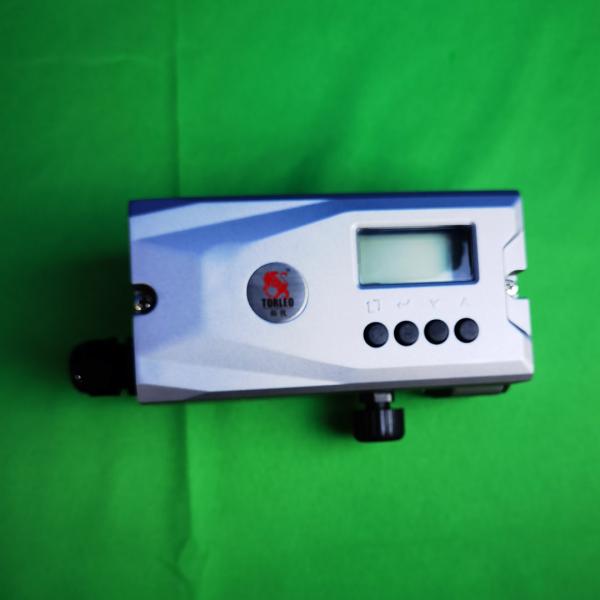

Double Acting Smart Electro Pneumatic Valve Positioner With Standard Mounting Bracket

Product Categories

Wuhan TORLEO Intelligent Co., Ltd.

Contact Now

Name: Double Acting Smart Electro Pneumatic Valve Positioner With Standard Mounting Bracket
Brand: TORLEO
Price: 810 USD

Brand Name : TORLEO

Model Number : TOP-5879F1-C41-11-LDP-11AYA1

Certification : SIL3

Place of Origin : China

MOQ : 1set

Price : USD810/set

Payment Terms : T/T

Supply Ability : 500sets/month

Delivery Time : 15-30working days

Packaging Details : 1carton/set, 280*155*123(mm)/carton

Mode of action : Double acting

Stroke : Straight stroke

Fault state : Fail safe

Position feedback : Without

Mounting bracket : Standard straight stroke mounting bracket

Pressure gauge set : Without

Explosion-proof grade : Not explosion-proof

Contact Now

smart valve positioner double acting straight stroke fail safe with standard mounting bracket

Model: TOP-5879F1-C41-11-LDP-11AYA1

Item	Indicator
Input signal	4~20mA
Sensor type	N/A
Gas source	pressure 1.4~6bar; no oil, no moisture, no dust and dirt
Journey	10~150mm
Input resistance	490☊(max.)/20mA(DC)
Electrical interface	NPT1/2 or G1/2 or custom
Pneumatic interface	NPT1/4
Repeatability	±0.3%F.S.
Linear	±0.3%F.S.
Hysteresis	±0.3%F.S
Sensitivity	±0.2%F.S
Output characteristics	linear, quick opening (25:1, 50:1), equal percentage (1:25, 1:50)
Protection class	IP66
Explosion-proof grade	Not explosion-proof
Security level	SIL3
Fault state	failsafe Off power, off signal, off gas, the valve is in the initial state
Operating temperature	-30℃~70℃
Material	die-cast aluminum
Gross weight	2Kg
Dimensions	240L80W110H (mm)
